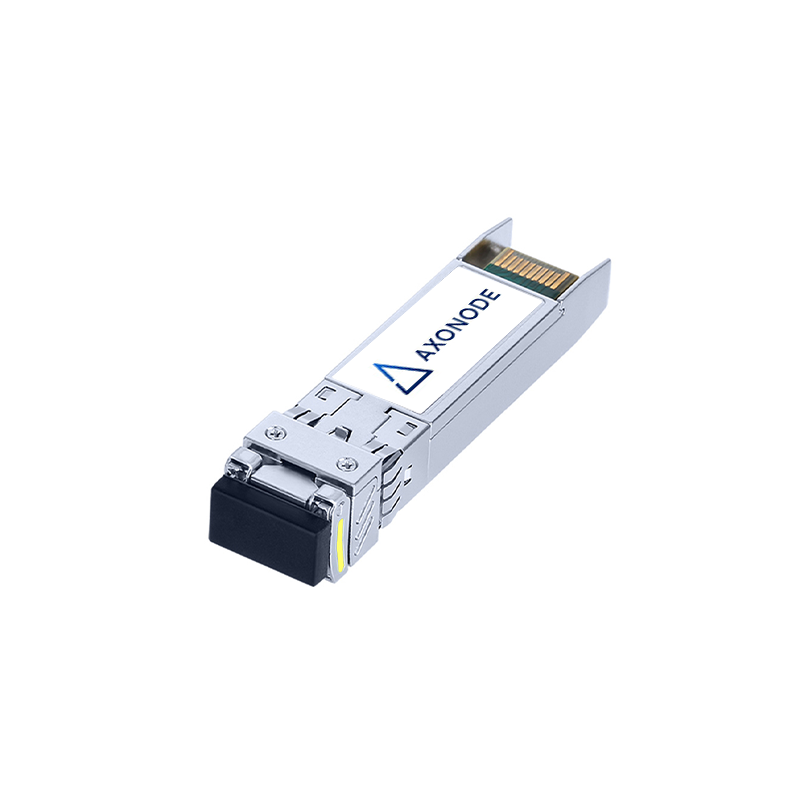

10G BiDi SFP+ 100km Optical Transceiver
Matched 10G BiDi SFP+ pair for single-fiber links up to 100km over SMF, using complementary 1490nm / 1550nm directions, Simplex LC and DDM / DOM.
Specifications
- Warranty
- 3-Years
- Customization
- Free OEM labeling
- Delivery Time
- 48 hours dispatch
Confirm the single-fiber link conditions first.
The Axonode 10G BiDi SFP+ 100km solution uses two complementary modules over one single-mode fiber strand. Confirm the route, connector type and patching arrangement, total optical loss and compatibility coding before deployment.
10G SFP+ Port
Confirm that the host device supports a standard 10G SFP+ port and the required compatibility coding.
Simplex LC / Single Fiber
Use one SMF strand with Simplex LC.
Reach Up to 100km
Verify route loss, connector and splice losses, and engineering margin before deployment.
Matched modules and optical specifications
Module A uses TX 1490nm / RX 1550nm. Module B uses TX 1550nm / RX 1490nm. The two directions must be complementary.
| Product Type | 10G BiDi SFP+ Pair |
| Pair Part Number | A-10G-BIDI-100KM |
| Module A | A-10G-BIDI-100-1490 - TX 1490nm / RX 1550nm |
| Module B | A-10G-BIDI-100-1550 - TX 1550nm / RX 1490nm |
| Data Rate | Up to 10.7Gbps |
| Reach / Interface | 100km over SMF / Simplex LC |
| Transmitter / Receiver | Cooled EML / APD |
| TX Power | -1 to +4dBm |
| Receiver Sensitivity | Less than -23dBm |
| Extinction Ratio | Greater than 7.5dB |
| Power Supply | Single +3.3V |
| DDM / DOM | Supported |
| Operating Temperature | 0 to +70 degrees C |
| Storage Temperature | -40 to +85 degrees C |
| Compliance | SFP+ MSA, SFF-8472 and RoHS |
Long-reach single-fiber deployment
This matched pair is intended for long-reach ISP backhaul and regional point-to-point links where a single fiber strand must carry both directions. Confirm the complete loss budget and received power at both ends.
Compatibility prepared for your network
Confirm the exact host model, software or firmware, port mode, coding and required module direction. SFP+ form factor alone does not guarantee acceptance.
Testing and compliance
Testing can include wavelength direction, optical power, DDM readings, host recognition and link establishment according to product and project requirements.
Related product option
Use the published 80km option when the verified route and optical loss do not require the 100km design.
Compare with the 10G BiDi SFP+ 80km optionFrequently Asked Questions
How are the modules paired?
Use TX 1490nm / RX 1550nm at one end and TX 1550nm / RX 1490nm at the other.
Does the link use one fiber?
Yes. It uses one SMF strand with Simplex LC connections.
Is 100km guaranteed on every route?
No. Confirm route loss, connectors, splices and engineering margin against the verified optical limits.
Can identical directions be linked?
No. The transmit and receive directions must be complementary.
What should be checked before ordering?
Confirm host models, coding, reach, fiber route, loss budget and required A/B quantities.
Are receiver overload and wavelength ranges specified?
These values are not stated in the supplied product references and should be confirmed before final link-budget approval.
What should be checked if the link fails?
Check wavelength pairing, coding, port configuration, LC cleanliness, fiber continuity and DDM readings.
Is compatibility universal?
No. Host coding and software requirements must be verified for the target equipment.
