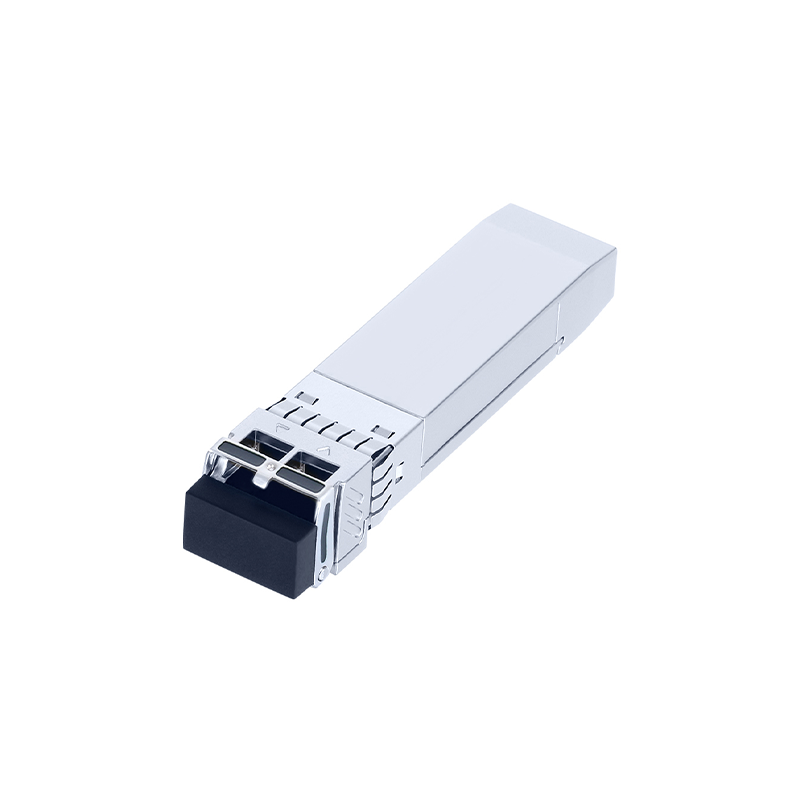

10GBASE-SR SFP+ 300m Optical Transceiver
10GBASE-SR SFP+ optical transceiver designed for 10 Gigabit Ethernet short-reach links over multimode fiber up to 300m. Featuring 850nm wavelength, duplex LC interface, DDM monitoring and multi-vendor compatible coding options, it supports reliable data center and enterprise access connections. Axonode helps network teams select tested, compatible optics for stable deployment across different switch environments.
Specifications
- Warranty
- 3-Years
- Customization
- Free OEM labeling
- Delivery Time
- 48 hours dispatch
1. Confirm the basic link conditions first.
Suitable for 10G short-reach data center, access switch and server/NIC links over multimode fiber.
10G SFP+ Port
Confirm the switch or NIC supports standard 10G SFP+ interfaces.
OM3 / OM4 MMF
Use multimode fiber with duplex LC connectors for short-reach links.
Reach Up to 300m
Ideal for rack, row and data center access connections.
2. Know the module. Then check the project.
The 10GBASE-SR SFP+ transceiver is designed for short-reach 10G transmission over multimode fiber. It is commonly used for data center access, switch-to-server and short switch-to-switch links.
| Ethernet Standard | 10GBASE-SR / 10GBASE-SW |
| Data Rate | 10.3Gbps, up to 11.3Gbps |
| Form Factor | SFP+ |
| Maximum Reach | Up to 300m on OM3 MMF |
| Fiber Type | Multimode Fiber |
| Connector | Duplex LC |
| Wavelength | 850nm |
| Laser / Receiver | VCSEL + PIN |
| TX Power | -6.0 ~ -0.5 dBm |
| RX Sensitivity | ≤ -10.5 dBm |
| Power Consumption | <1W |
| DDM / DOM | Supported |
| Operating Temperature | 0°C to +70°C, industrial option available |

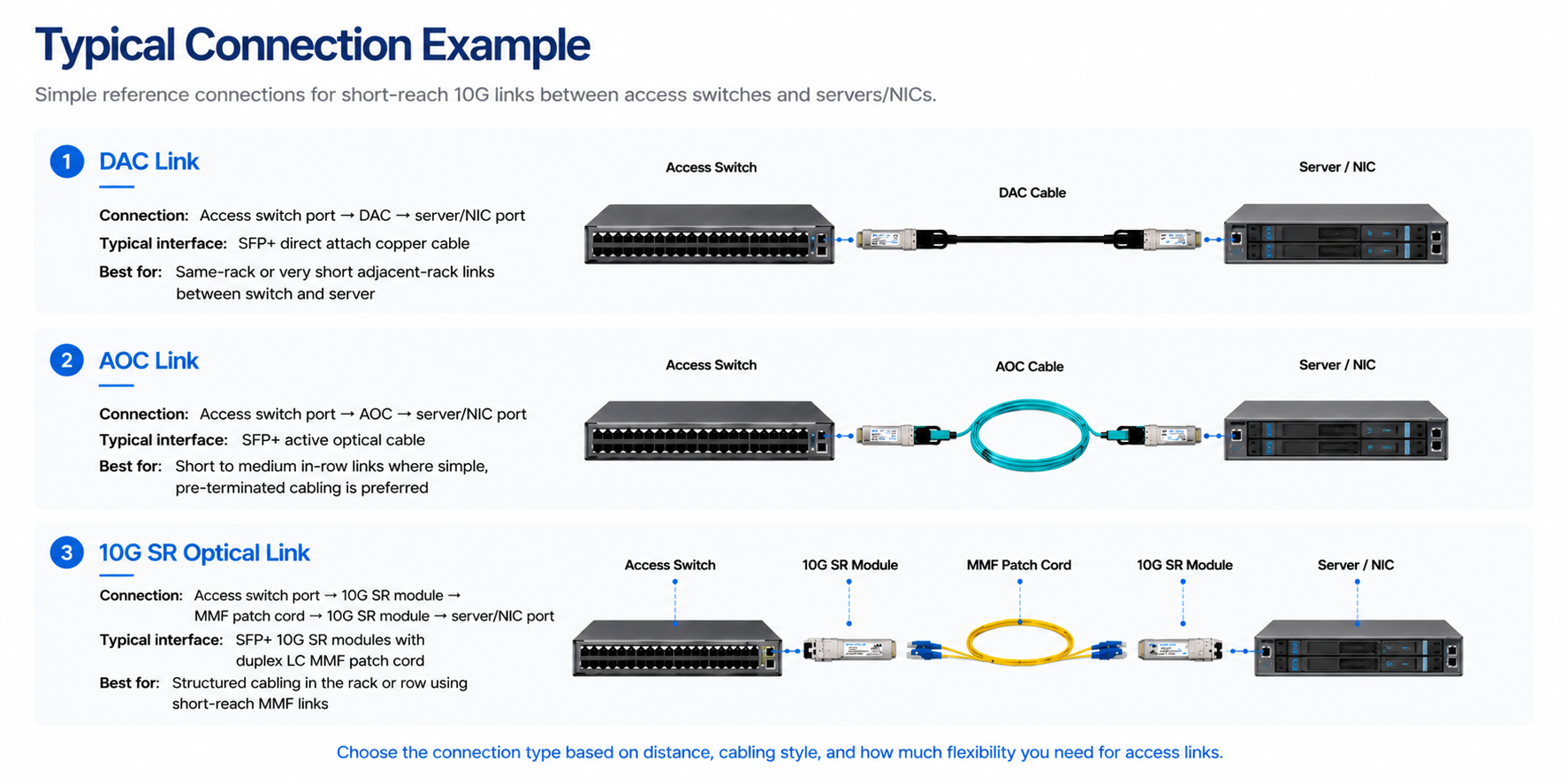

3. Typical 10G SR Deployment Scenario
Use 10G SR for short-reach data center access links, switch-to-server connections and short switch-to-switch links over multimode fiber.

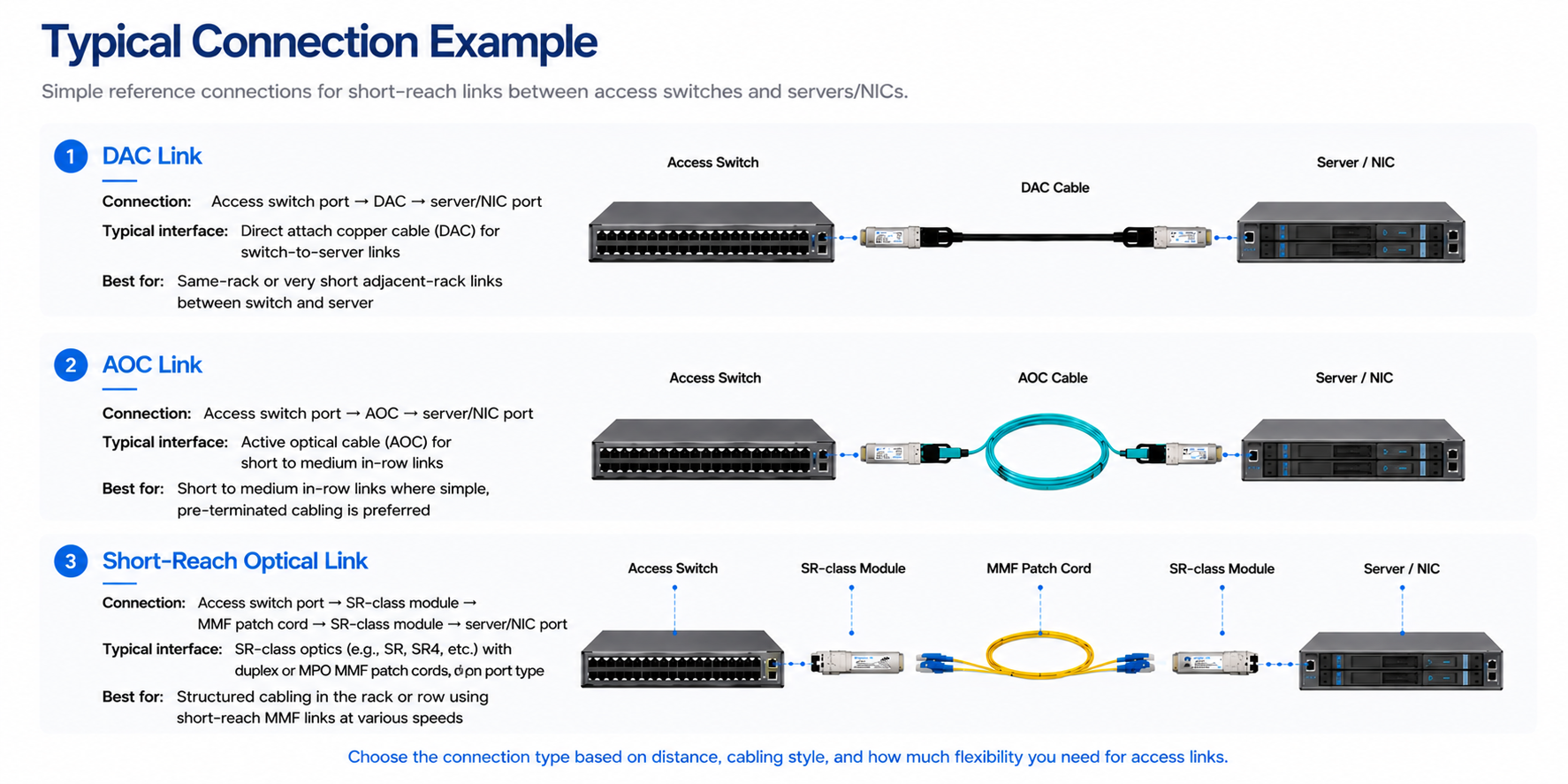

4. Typical Connection Example
Compare common short-reach connection methods before choosing SR optics, DAC or AOC.
5. Quality & Certifications
Every module is manufactured under strict quality control processes. Axonode validates optical performance, temperature stability and compatibility before shipment to support stable deployment in real network projects.
6. Comprehensive Testing
Each module is qualified through optical parameter verification, BER testing and compatibility validation before shipment.
7. Not Sure Which 10G SFP+ Fits Your Link?
Different 10G SFP+ modules solve different deployment problems. Compare reach, fiber type and application before ordering.
| 10G Option | Typical Reach | Fiber / Connector | Best Fit | Check Before Ordering |
|---|---|---|---|---|
| 10GBASE-SR | 300m | OM3/OM4 MMF / Duplex LC | Data center short-reach links | Fiber type, distance and switch compatibility |

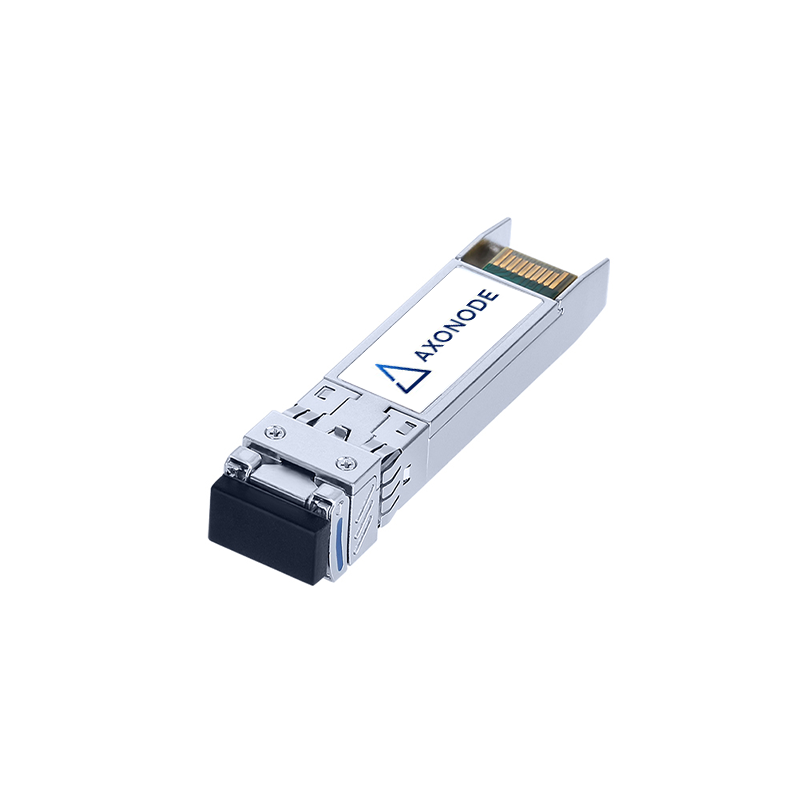

| 10GBASE-LRM | 220m | Legacy MMF / Duplex LC | Existing MMF upgrade | OM1/OM2 fiber condition and distance limit |
| 10GBASE-LR | 10km | OS2 SMF / Duplex LC | Campus interconnect | Host coding, link budget and fiber route |

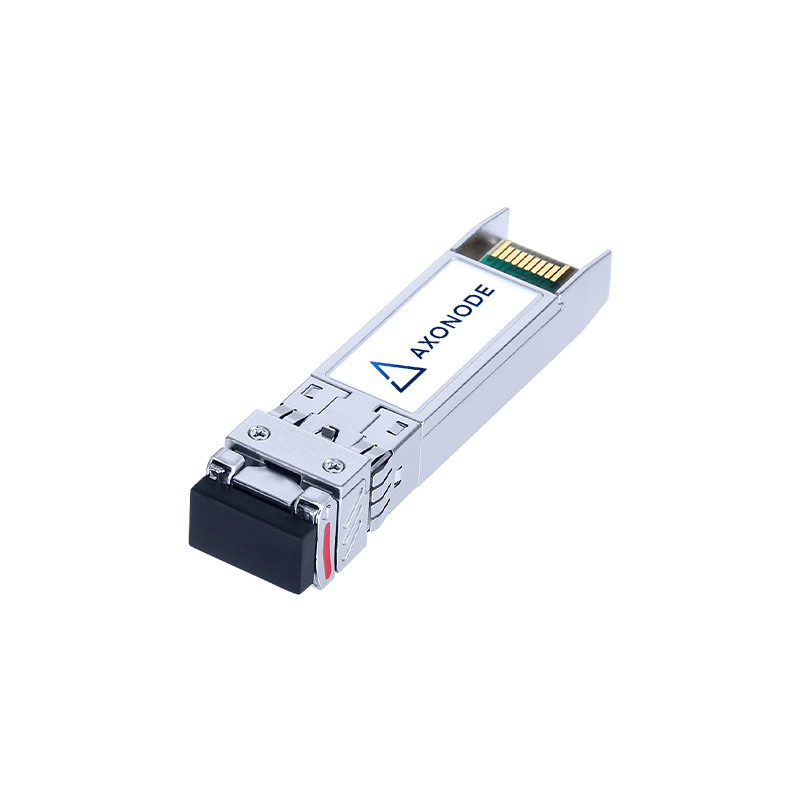

| 10GBASE-ER | 40km | OS2 SMF / Duplex LC | Metro links beyond standard LR distance | Optical budget, fiber attenuation and connector cleanliness |

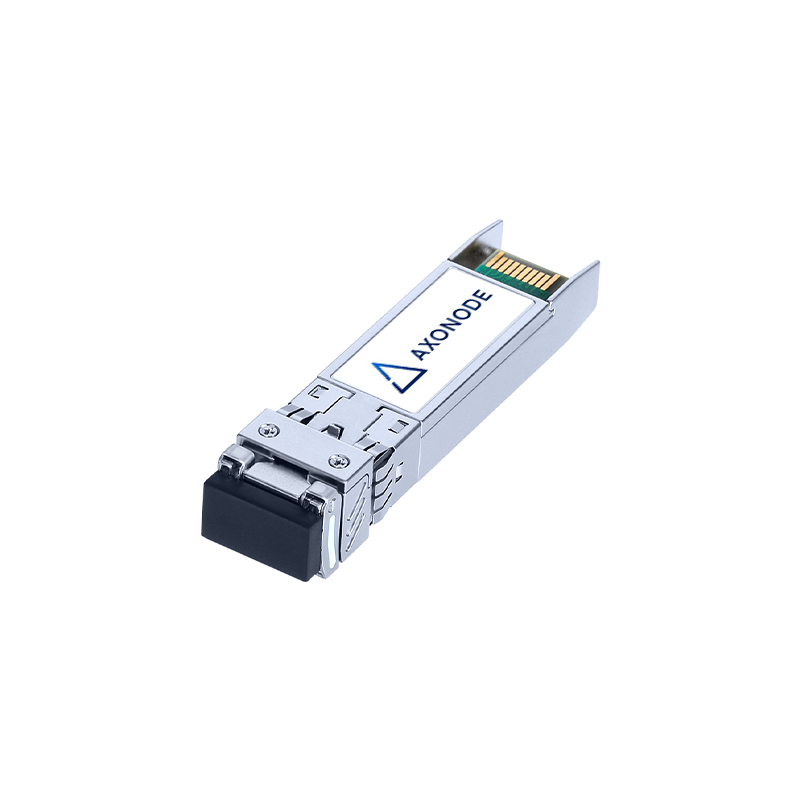

| 10GBASE-ZR | 80km | OS2 SMF / Duplex LC | Regional backbone / POP links | Optical budget, receiver power and attenuation requirement |
Frequently Asked Questions
i. When should I choose 10G SR instead of 10G LR?
Choose 10G SR for short-reach multimode fiber links inside data centers or equipment rooms. Choose 10G LR when the link uses single-mode fiber and needs longer reach, such as campus or building-to-building connections.
ii. What fiber is required for 10G SR?
10G SR uses multimode fiber with duplex LC connectors. Maximum reach depends on fiber grade, with up to 300m on OM3 MMF.
iii. When should I use SR optics instead of DAC or AOC?
Use SR optics when structured fiber cabling, patch panels or flexible module replacement are required. DAC is usually best for very short copper links, while AOC is often used for simple pre-terminated short optical links.
iv. Can this 10G SR module work with my existing switch or NIC?
Yes. Axonode can provide compatible coding for Cisco, Juniper, Arista, HPE and other vendor environments. Please share the exact switch or NIC model before shipment.
v. What information should I provide before ordering?
Please confirm your switch or NIC model, required compatibility, fiber type, link distance and whether the link uses direct cabling or structured patch panels. Axonode can help verify the correct short-reach option before shipment.
Planning a 10G short-reach link?
Send your switch model, fiber type and link distance. We'll help confirm whether SR, DAC or AOC is the right option for your project.
